Product Description

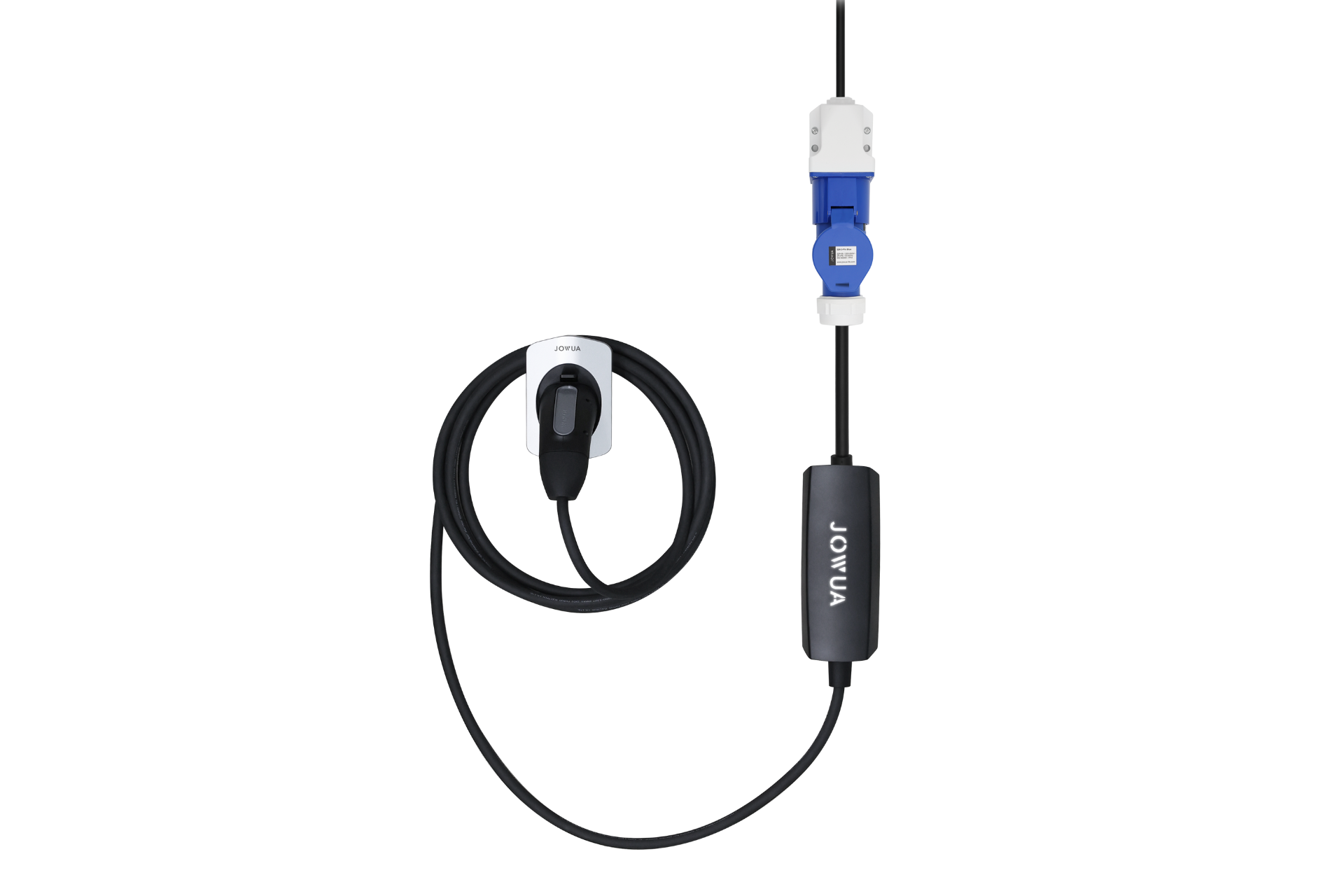

Type-2 Mobile Connector – A Versatile Must-Have for EV Owners
The mobile charging station allows medium to slow charging for your vehicle through different types of outlets. Its portability enables you to charge your EV anytime, anywhere, without relying on fixed charging facilities. Use it at home or keep it in your car for long-distance trips! Enjoy a reliable charge anytime, anywhere.
The Swiss Knife of EV Chargers :

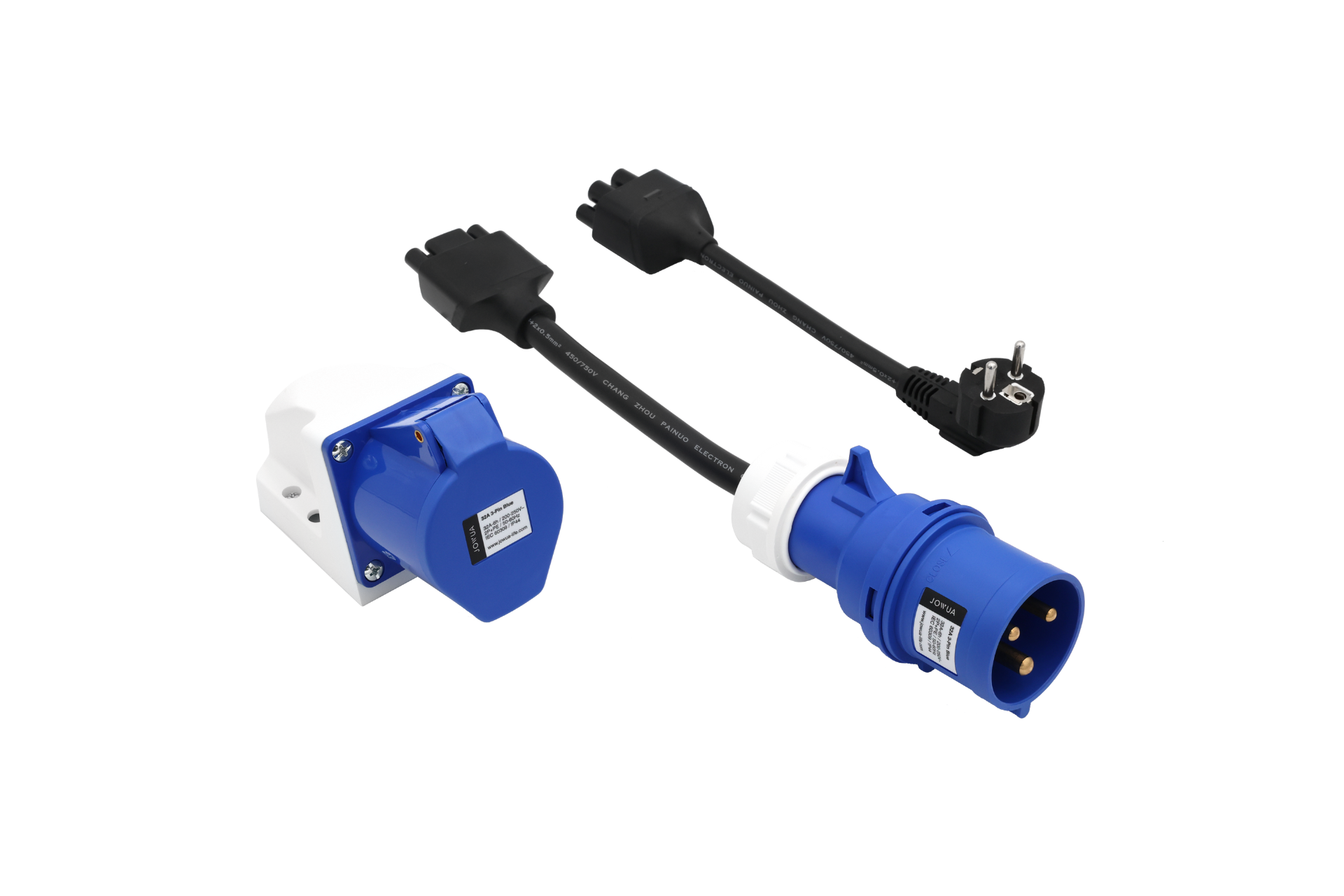

- Daily Home Use: Use with the IEC 60309 Blue Adapter - 32A 3 Pin. for convenient overnight full charge on your EV at 7.6kW.
- Portable Use: Use our Allrounder solution to charge where ever you are with the Schuko Adapter.
Blue Adapter 32A/7kW Superior Charging Performance
Fully charge your EV overnight. Equipped with UL-certified high-grade cables, allowing you to charge up to 32A/7.6kW.
UL-certified high-grade cables improves charging efficiency and slows down the temperature rise, ensuring safe charging.
Plug Diameter: 56 mm
Maximum Power: 7.6 kW
Maximum Range per Hour of Charge: 48 km/h
Built-in Exclusive Dual Temperature Control Chip
It constantly monitors and controls the temperature of the device and the adapter. If the temperature exceeds safe levels, the power will automatically cut off, ensuring the highest level of safety.
Scheduled Charging for Cost Savings
With built-in Wi-Fi interface, you can set timers via your smartphone. You can also adjust the charging power and monitor the temperature at any time. Set it up one time and monitor your charge directly from the Tesla App afterwards.
Nickel and Silver Plated Terminals
Using nickel and silver-plated terminals, the charger offers excellent corrosion resistance, oxidation prevention, wear resistance, and stable conductivity.
Flame Retardant UL94 V-0 Certified
Meets the highest flame retardant standards. If exposed to fire, it will extinguish immediately once the fire is removed and will not produce any dripping that could sustain a fire.
IP55 International Dust and Water Protection Rating
Fully sealed to prevent dust and water ingress, making it safe to use even in rainy weather.
OCPP1.6J Support
The JOWUA mobile charger supports the Open Charge Point Protocol (OCPP) 1.6 version with JSON (JavaScript Object Notation), an open standard communication protocol for electric vehicle charging stations and central management systems. The OCPP upgrade file can be obtained on through our WhatsApp channel or via service@jowua-life.com

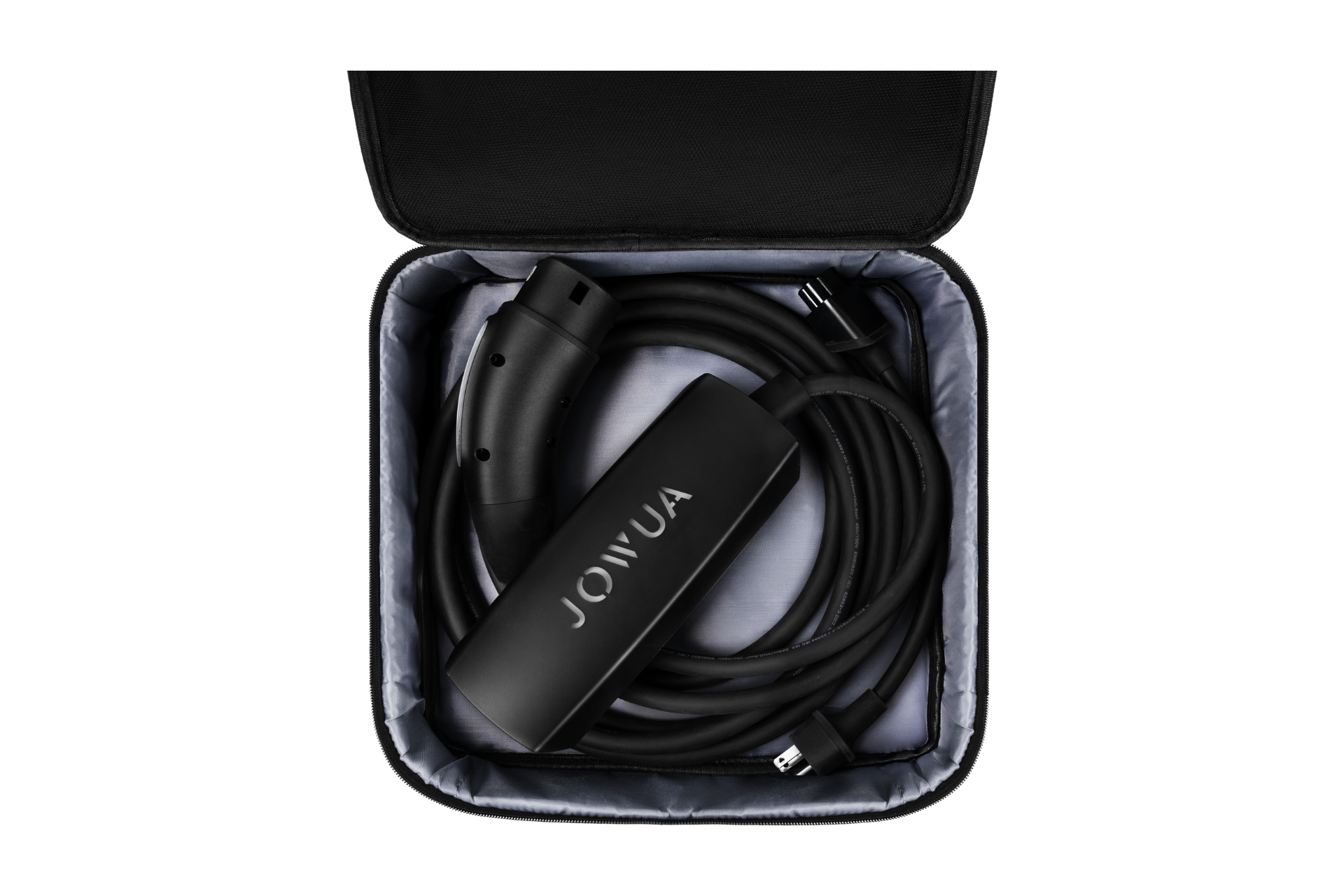

Jowua Carrying Bag
Comes with a stylish carrying case for easy transport and storage, protecting your charger from scratches.
Specification
Find the full user manual here >>> FAQ/Supports .
|
Voltage
|
100-240 volt AC single-phase |
|
Current (Max)
|
32A Maximum
Controlled by the appropriate adapter
|
|
Grid Frequency
|
50 or 60 Hz |
|
Cable Length
|
5.5 m (with adapter installed) |
|
Mobile Connector
Controller Dimensions
|
Height: 233 mm
Width: 89 mm
Depth: 61 mm
|
|
Weight
|
2.6 kg |
|
Operating Temperature
|
-30°C to +50°C
(-22°F to +122°F)
|
|
Enclosure Type
|
IP55 / IK08
|
|
Ventilation
|
Not Required |
FAQ/Supports
>>> FAQ/Supports

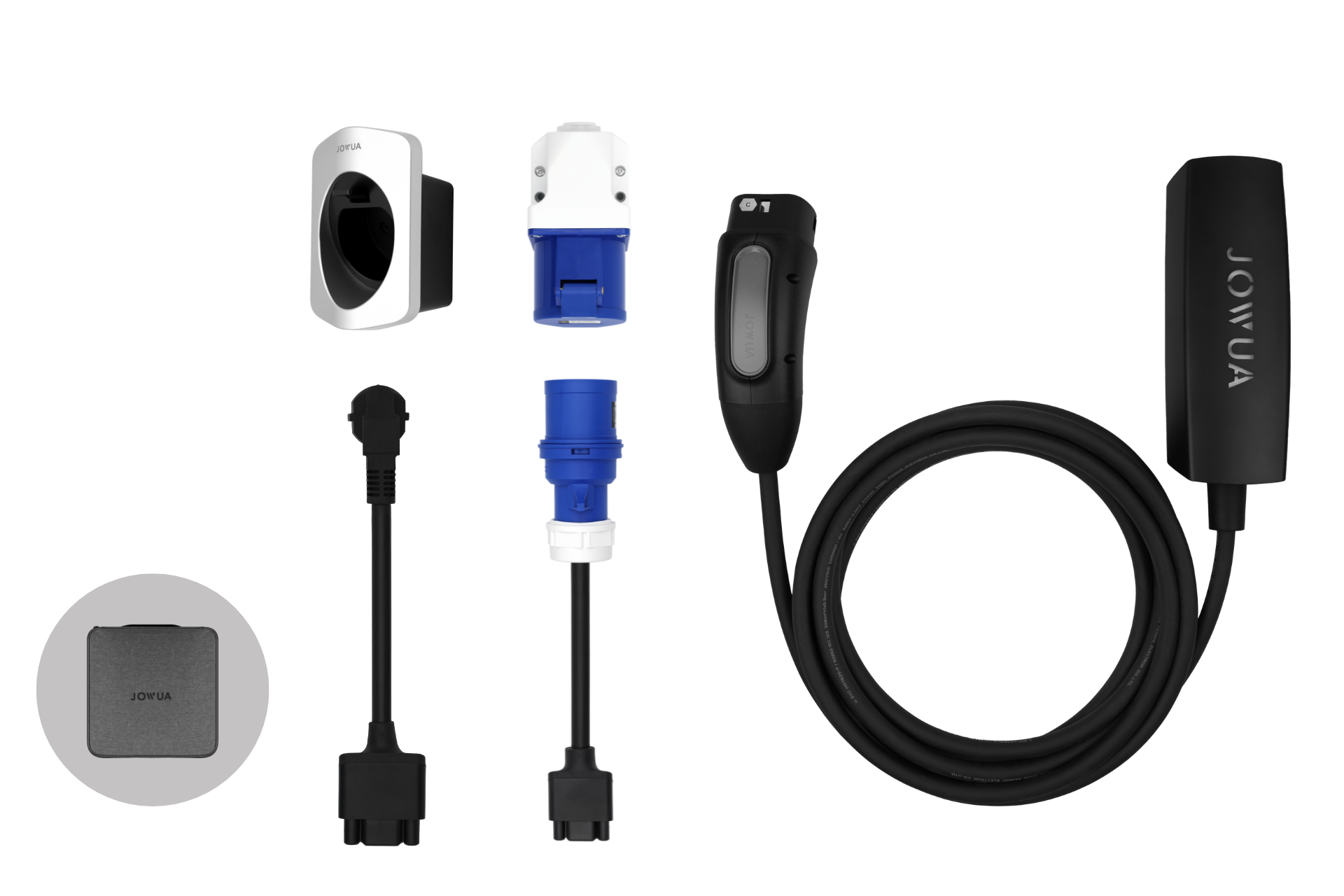

Package Included
- Type-2 (CCS2-AC) Mobile Connector x1
- Schuko Adapter x1
- Blue Adapter - 3-Pin, 32A, IEC 60309 Adapter Single Phase x1
- Blue Outlet - 3-Pin, 32A, IEC60309 Socket Single Phase x1
- Charging Cable Holder for Type 2 (CCS2-AC) x1
- Jowua Carrying Case x1
